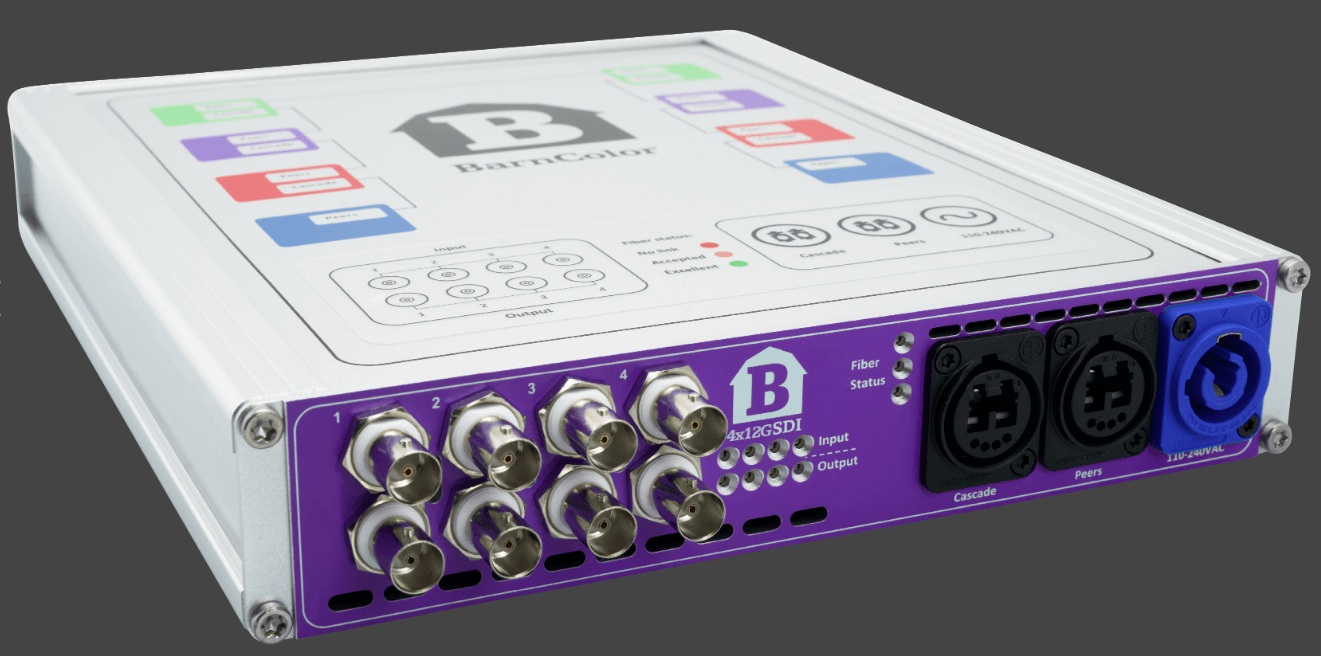

Video over Fiber Solution w/4x 12G-SDI Forward/4X 12G-SDI Returns – Blue. Designed to be a cost-effective and easy-to-deploy solution for transmitting multiple video signals both directions on a single fiber cable. BarnColor allows you to handle up to 32 x 3G-SDI signals (16 forward and 16 returns). Each BarnColor device handles up to 8 signals (4 forward and 4 returns) and up to 4 different colors of BarnColors can be daisy chained. This flexible system is easy to install, upgrade and use. It is well suited for both fixed and temporary installations.
Description
BNC-Ports
• SMPTE 258M, 292M, 372M, 424M, DVB-ASI, SMPTE ST-2081, ST-2082
• Multirate reclocking of outputs 270Mbps – 12Gbps
Fiber port
• Neutrik opticalCON DUO, also compatible with duplex Single Mode fiber LC-LC
• SMPTE 297M
Power plug
• Neutrik powerCON
• 100-240VAC, 15Watt
Physical size
• 223mm x 277mm x 44mm (8.8” x 10.9” x 1.7”)
• 1.4 kg
Order codes:
• BarnColor-12G-SDI-G – Green position
• BarnColor-12G-SDI-P – Purple position
• BarnColor-12G-SDI-B – Blue position
• BarnColor-12G-SDI-R – Red position
• BC-PowerCable-EU – 220VAC Europe/Schuko (Hybrid CEE 7/7 plug)
• BC-PowerCable-US – 110VAC US (NEMA 5-15 grounded (Type B)
Additional information
| FIBER TYPE | 12G, 3G, Eithernet, Tally, Throw-Down Brick |
|---|---|
| FIBER MODE | Single Mode |
| LIGHT WATT POWER | 1-99w |
