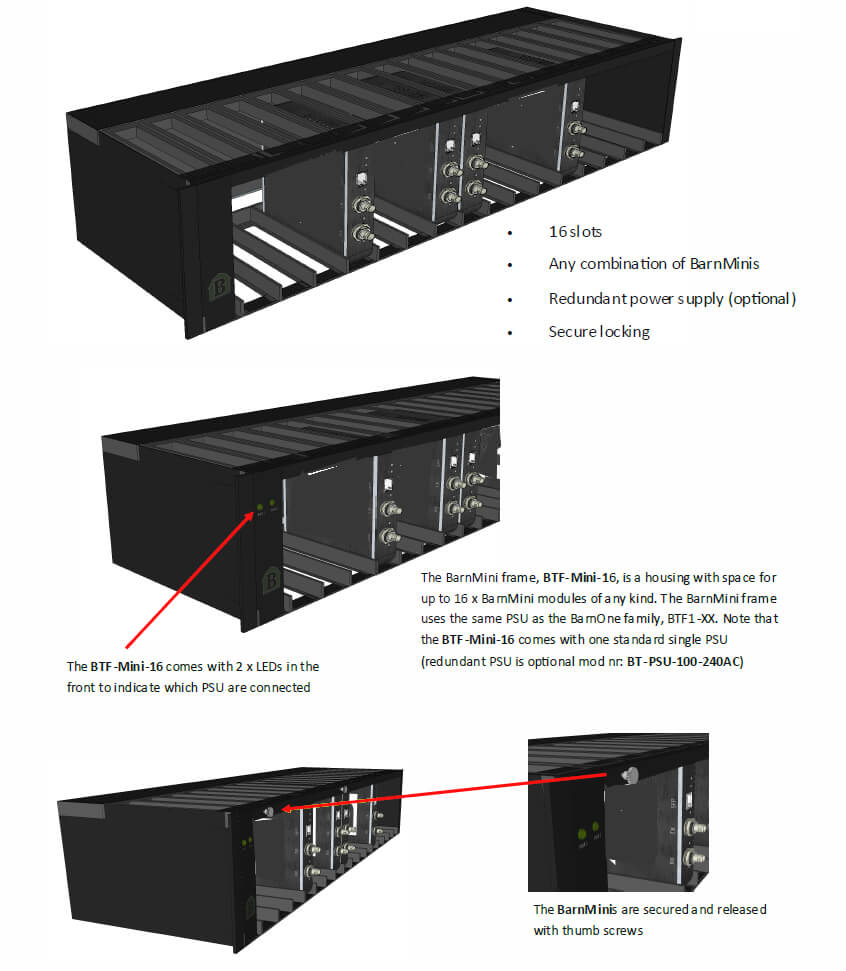

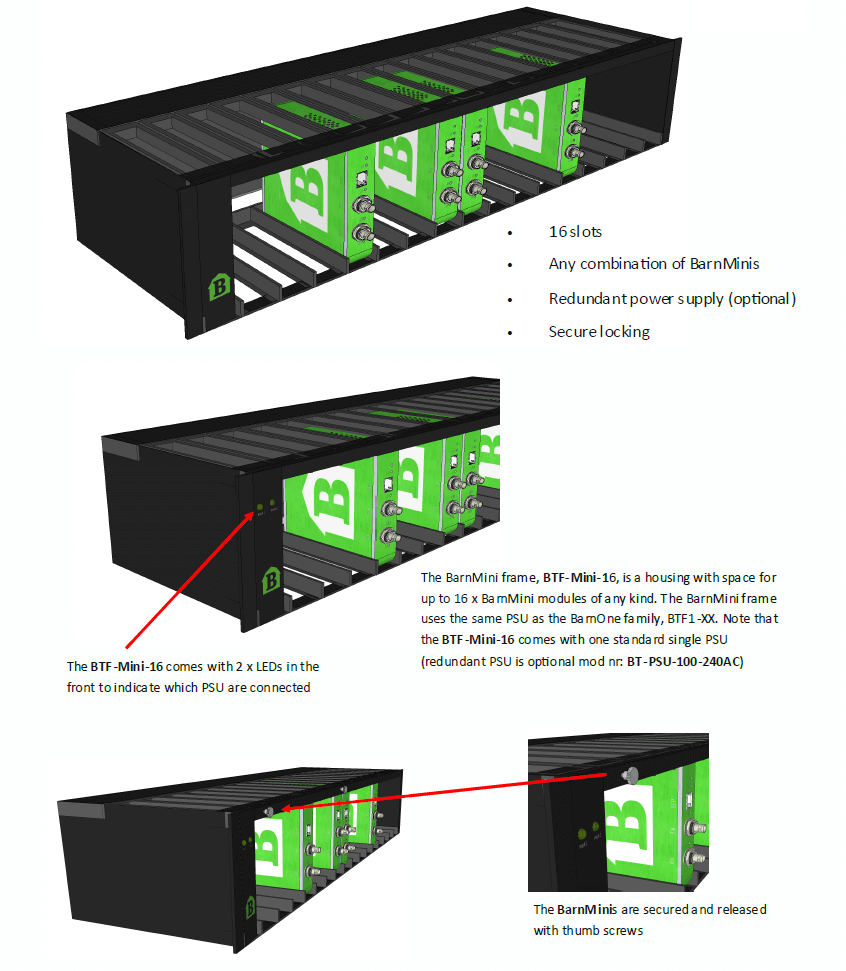

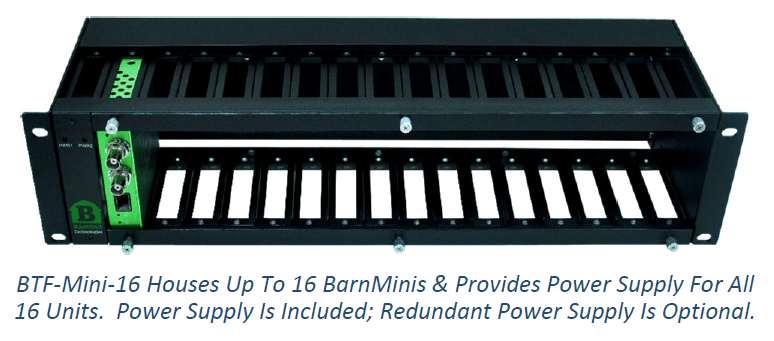

The BarnMini frame, BTF-Mini-16, is a housing with space for up to 16 x BarnMini modules of any kind.
Description
The BarnMini frame uses the same PSU as the BarnOne family, BTF1-XX.
The BTF-Mini-16 comes with 2 x LEDs in the front to indicate which PSU are connected
Note that the BTF-Mini-16 comes with one standard single PSU (redundant PSU is optional mod nr: BT-PSU-100-240AC)
Technical Specifications
Features
- 16x BarnMini slots
- Any combination of BarnMinis
- Redundant power supply (optional)
- Secure locking
Additional information
| FIBER MODE | Single Mode |
|---|---|
| FIBER TYPE | 3G, Eithernet, Tally, Throw-Down Brick |
| LIGHT WATT POWER | 1-99w |
